Gumiházas rugó nélküli szimering

KC is a single action rotary shaft seal for rotating or pivoting shafts. The sealing lip design without a spring produces less friction. As a result the sealing action in comparison to rotary shaft seals with energised springs is reduced. The elastomer outer sheath provides good static sealing, good thermal expansion balance e.g. in light-metal housings, better sealing with greater roughness and secure sealing for split housings as well as good static sealing with thin fluid or gaseous media.

Material
NBR 70 SHORE A
carbon steel
MediaMineral oils, Greases
Temperature-35°C / +100 °C
Pressure≤0,5 bar
Speed12 m/s

Product advantages

  • good static sealing and thermal expansion compensa­tion
  • low friction and low heat generation
  • extremely compact design
  • low radial force provides a low brake-out torque
  • suitable for scraper applications

Application

Secondary sealing e.g. as a dust, dirt or spray protection seal in electric engines, as a grease retainer. For roller bearings, tooling fixtures (e.g. drilling machines), sealing against viscous media (e.g. grease), supplementary excluders (shaft ends), axle king pin seals.

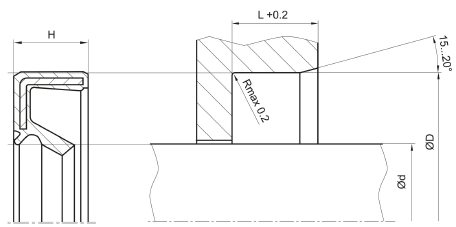

Seal housing tolerance

Ødf8/h11
ØDH8

Installation

Suitable tool should be used for installation. It is recommended that the installation housing is designed to provide the rotary shaft seal with axial support.

Surface roughnessRa(μm)Rz(μm)Rmax
Groove base ØD≤1.6-6.3≤10-25≤25
Shaft≤0.2-0.8≤1.0-5.0≤6.3
